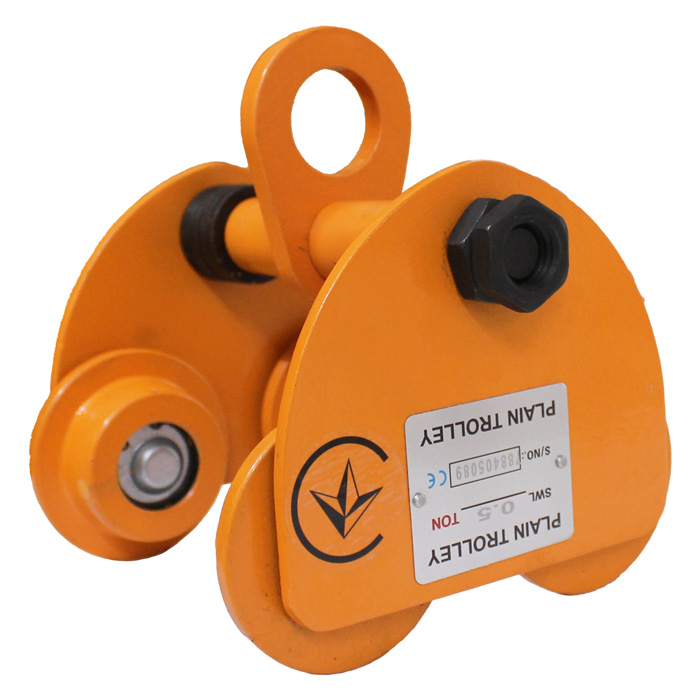

Plain trolley 0,5 t

Brand: PRC

Product Code: 269-01

In Stock

1 614.00 ₴

Found this product cheaper?

Specifications: (see all)

Working load limit, t

0,5 t

Standard

EN 13157

Weight of an item, kg

5,0 kg

The online store “Takelag System” offers to purchase a plain trolley 0.5 t, which is suitable for moderate operation. The model range is presented in load capacities from 0.5 to 5.0 t.

The hoist trolley (carriage) is a simple and easy-to-use device designed to move the hoist with a suspended load in a horizontal plane. The plain trolley is installed by suspending it from beams of various profiles or a monorail with the ability to adjust the center distance. Moving the carriage in the horizontal direction with a suspended load is carried out by pushing the device manually.

Load capacity, t	А	В	С	№ beam	Beam width, mm	Weight, kg
0,5	208	170	190	14-27	75-125	5,0
1,0	220	206	222	14-27	75-125	6,3
2,0	260	240	267	18а-36	100-150	10,3
3,0	285	282	320	18а-36	100-150	19,8
5,0	338	327	392	24а-50	125-175	27,0

Please check with our managers for the terms of fulfillment of an individual order for non-standard products or large batches!
