The online store “Takelag System” offers to purchase a stainless threaded swage terminal.
Cable terminals are made of AISI316 stainless steel containing up to 2.5% molybdenum, which makes the products highly resistant to corrosion and critical temperatures of exposure to chemically active substances.
These terminals may only be used to crimp stainless steel ropes or galvanized ropes with a metal core. This applies to ropes of 7x7, 7x19, 1x19 designs. At the same time, it is allowed to use ropes with a fiber core (6x7, 6x19) based on organic materials for decorating the scenery.
Ropes, cords, cables made of synthetics are not recommended to be crimped!
| Thread type, G |
Rope Ø |
L1 |
L2 |
L3 |
D |
K |
М |
|
M5 |
2 |
86,4 |
32 |
40 |
5,5 |
4 |
0,01 |
|
M6 |
3 |
100 |
40 |
48 |
6,3 |
5 |
0,02 |
|
M8 |
4 |
117 |
46 |
56 |
7,5 |
6 |
0,03 |
|
M8 |
5 |
125 |
52,6 |
56 |
9,0 |
7 |
0,04 |
|
M10 |
6 |
146,7 |
65 |
62 |
12,5 |
10 |
0,10 |
|
M12 |
8 |
182 |
81,3 |
79 |
16,0 |
14 |
0,19 |
|
M16 |
10 |
214 |
92 |
100 |
18,0 |
15 |
0,31 |
|
M20 |
12 |
247 |
106 |
119 |
20,0 |
17 |
0,51 |

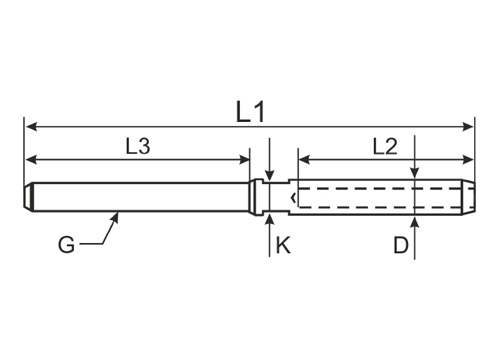

where,
from L1 to K - dimensions, in mm;
M - weight of 1 piece/kg.
